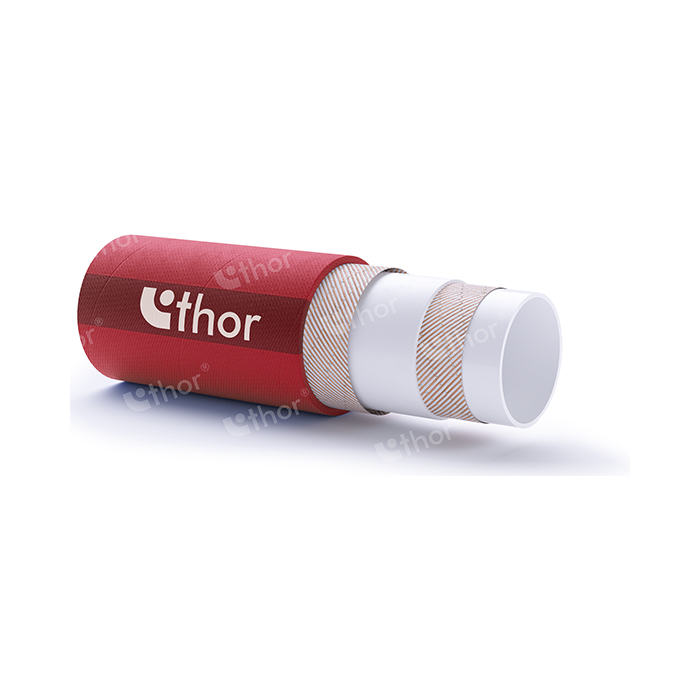

COBEER E0R
Delivery hose for beer, fine wines, non-alcoholic and alcoholic beverages with an alcohol content up to 96%. Robust hose design for heavy duty applications and intense cleaning and sterilization processes. The particular hose design is resistant to accidental crushing. Produced in accordance with the EC 1935/2004 and EC 2023/2006 (GMP), the hose is free from phthalates, BPA, PAH and ADI; furthermore, it is Reg. EC 1907/2006 (REACH) compliant. Complies with FDA 21 CFR 177.2600, 3-A Sanitary Standards 18-03, BfR XXI cat.2, D.M. 21.03.73
Technical Characteristics
-
Tube
White food-grade IIR rubber which guarantees taste and aroma of the conveyed product.
-
Reinforcement
High tensile textile plies separated by rubber layers.
-
Cover
Synthetic rubber red, abrasion, ageing and ozone resistant.
-
Temperature
-30 °C +120 °C. Sterilization with steam +130 °C for max. 30 minutes.
-
Marking
THOR COBEER
Medidas
| Ref. | I.D. mm | O.D. mm | Working pressure bar | Burst Pressure bar | Appr. weight kg/m |
|---|---|---|---|---|---|
| COBE16.025 | 25 | 37 | 16 | 48 | 0.69 |
| COBE16.032 | 32 | 48 | 16 | 48 | 1.20 |
| COBE16.038 | 38 | 56 | 16 | 48 | 1.60 |
| COBE16.040 | 40 | 60 | 16 | 48 | 1.89 |
| COBE16.051 | 51 | 71 | 16 | 48 | 2.33 |
| COBE16.063 | 63 | 85 | 16 | 48 | 3.44 |
| COBE16.076 | 76 | 102 | 16 | 48 | 4.38 |
| COBE16.102 | 102 | 132 | 16 | 48 | 6.70 |
