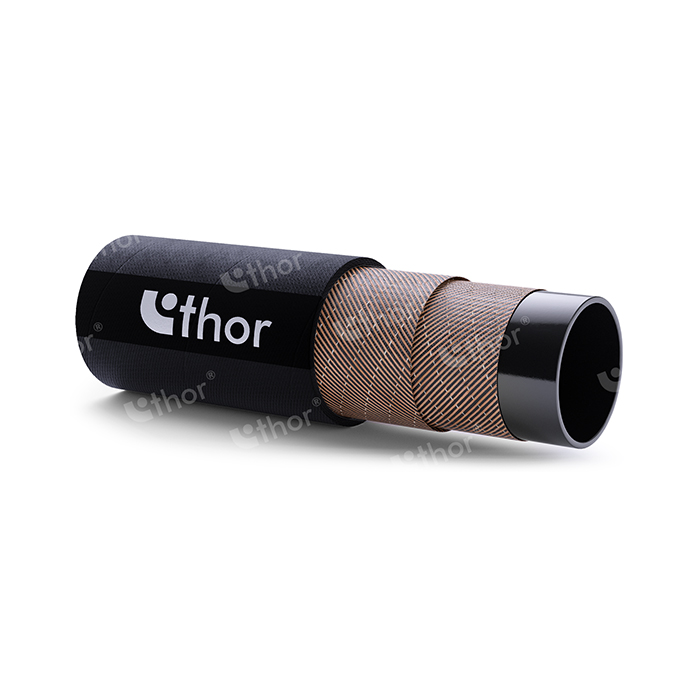

CARBOPOMP®/M I5T
Mandrel built hose for delivery of petrol, diesel oil, biodiesel to engine on private boats up to 24 mt. Suitable for petroleum products up to 50% aromatic content, biodiesel, ecological fuel with max. 15% oxygenated compound. Hose thinner than the standard ones and guarantees a good resistance to bends, kinking and permeations of the different kinds of fuels. Complying ISO 7840:2021 A1 and SAE J 1527:2011 USCG A1. RINA and Lloyd’s approval.
Technical Characteristics
-
Tube
Black NBR rubber.
-
Reinforcement
High tensile textile plies.
-
Cover
Black NBR self-extinguishing rubber resistant to abrasion, heat, oil, ozone and marine environment.
-
Temperature
-20 °C +80ºC
-
Marking
THOR® CARBOPOMP® MARINE FUEL ISO 7840:2021 A1 E10/B10 COMPATIBLE CE SAE J 1527:2011 USCG A1 – RINA – LLOYD’S REGISTER [YEAR – I.D.] (in red color)
Medidas
| Ref. | I.D. mm | O.D. mm | Burst Pressure bar | Appr. weight kg/m | Stock |
|---|---|---|---|---|---|
| CAR10.06 | 6 | 15 | >14 | 0.24 | * |
| CAR10.08 | 8 | 16 | >14 | 0.25 | * |
| CAR10.10 | 10 | 18 | >14 | 0.28 | * |
| CAR10.12 | 12 | 21 | >10 | 0.36 | * |
| CAR10.16 | 16 | 25 | >10 | 0.45 | * |
| CAR10.19 | 19 | 28 | >10 | 0.50 | * |
| CAR10.25 | 25 | 37 | >10 | 0.86 | * |
| CAR10.30 | 30 | 42 | >10 | 0.99 | * |
| CAR10.32 | 32 | 44 | >10 | 1.05 | * |
| CAR10.35 | 35 | 47 | >10 | 1.09 | |
| CAR10.38 | 38 | 52 | >10 | 1.43 | * |
| CAR10.40 | 40 | 54 | >10 | 1.48 | |
| CAR10.45 | 45 | 59 | >10 | 1.65 | |
| CAR10.48 | 48 | 62 | >10 | 1.74 | |
| CAR10.50 | 50 | 64 | >10 | 1.84 | * |
| CAR10.57 | 57 | 71 | >10 | 2.03 | |
| CAR10.63 | 63 | 74 | >10 | 2.08 |
