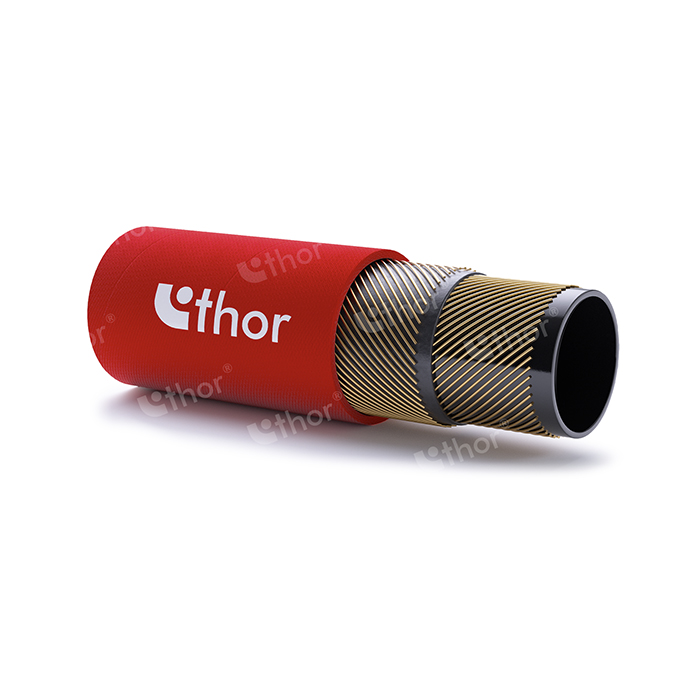

MAINE 60R
Mandrel built steam hose designed for use with saturated steam up to 210 °C / 18 bar and peaks of superheated steam up to 232 °C / 18 bar. Complying with BS 5342 type 2A.
Technical Characteristics
-
Tube
Black EPDM rubber.
-
Reinforcement
High strength spiral wire.
-
Cover
Red EPDM rubber, abrasion, ozone and weather resistant. Pin pricked to evacuate gases.
-
Temperature
-40ºC + 210ºC
-
Marking
BS 5342 2A [Year] 18 Bar – 261 PSI [Ø]/PEAKS UP TO + 232 °C – 450 °F DRAIN AFTER USE (in white letters)
Medidas
| Ref. | I.D. mm | O.D. mm | Working pressure bar | Burst Pressure bar | Appr. weight kg/m | Stock |
|---|---|---|---|---|---|---|
| MAI17.013 | 13 | 25 | 18 | >180 | 0.55 | * |
| MAI17.016 | 16 | 28 | 18 | >180 | 0.65 | |
| MAI17.019 | 19 | 31 | 18 | >180 | 0.73 | * |
| MAI17.025 | 25 | 37 | 18 | >180 | 0.91 | * |
| MAI17.032 | 32 | 46 | 18 | >180 | 1.33 | * |
| MAI17.038 | 38 | 52 | 18 | >180 | 1.57 | * |
| MAI17.051 | 51 | 66 | 18 | >180 | 2.25 | * |
| MAI17.063 | 63 | 81 | 18 | >180 | 3.38 | |
| MAI17.076 | 76 | 96 | 18 | >180 | 4.56 | |
| MAI17.102 | 102 | 124 | 18 | >180 | 6.99 |
