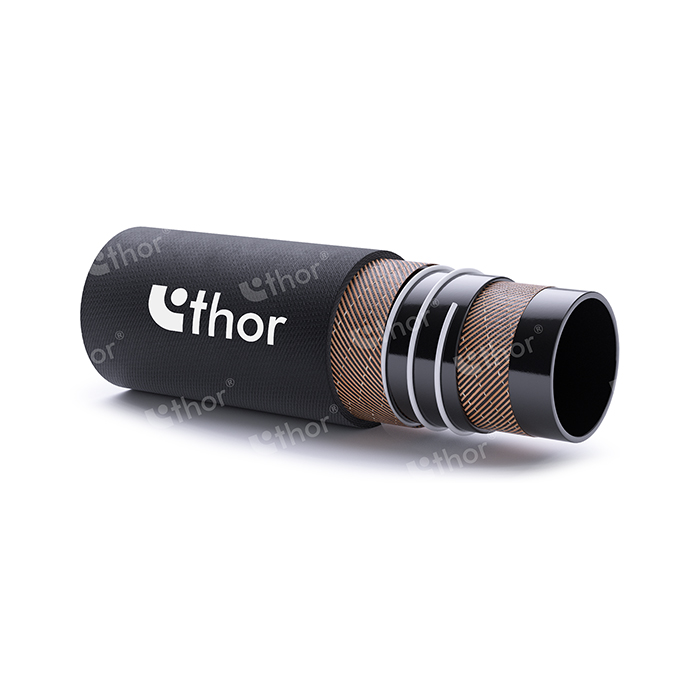

CARBOPOMP®/AVIO BSF
Aviation refuelling delivery hose suitable for petroleum products with up to 30% aromatic content. Meets ISO 1825:2017 – Type F and EI 1529.
Technical Characteristics
-
Tube
Black NBR rubber.
-
Reinforcement
High tensile textile plies and nylon helix embedded.
-
Cover
Black conductive rubber resistant to oil, weather and ozone.
-
Temperature
-40 °C +70 °C in static position.
-
Marking
THOR – según norma / selon norme / according to norm.
Medidas
| Ref. | I.D. mm | O.D. mm | Working pressure bar | Burst Pressure bar | Vacuum bar | Appr. weight kg/m | Bending Radius mm |
|---|---|---|---|---|---|---|---|
| AVIOF.025 | 25 | 42 | 20 | 80 | 0.35 | 1.14 | 150 |
| AVIOF.032 | 32 | 49 | 20 | 80 | 0.35 | 1.44 | 185 |
| AVIOF.038 | 38 | 55 | 20 | 80 | 0.35 | 1.63 | 225 |
| AVIOF.051 | 51 | 71 | 20 | 80 | 0.35 | 2.44 | 275 |
| AVIOF.063 | 63 | 84 | 20 | 80 | 0.35 | 2.99 | 300 |
| AVIOF.076 | 76 | 95 | 20 | 80 | 0.35 | 3.49 | 300 |
